Octagonal Yurt Building Plans Kit.

YURT PLANS KIT - Design Concept

The Large Yurts are designed on a simple 3600mm (12ft.) wall length to enclose an area of 64 square metres (685 sq.ft.). The Small Yurts are based on a 2400mm (8ft.) wall length.

The height of the walls vary depending on how you want to design your own Yurt. The wall height begins at 2700mm (9ft) for a single storey Yurt, and can go up to 5100mm (17ft), or higher, for a two storey Yurt.

The Yurts are designed to be easily expandable depending on your current and future needs and budget.

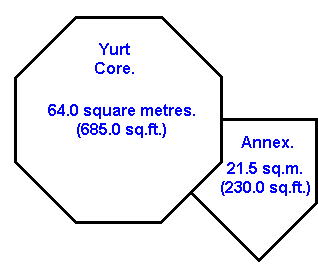

You can begin with a single Core Floor Plan.

Using the same Yurt design, at perhaps three different stages, you can end up with a large modular design.

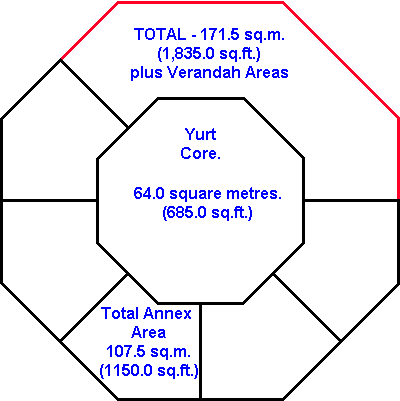

Or, you can add Annexes, up to 8, to the central Yurt Core. The eaves of the Annexes are high enough to allow further Pergola or covered Verandah areas to be attached.

The Yurt Annexes are designed to be open and free of tight corners, hence their six sided shape. All the angles in the room are 90 degrees or greater.

The Yurt Annexes can be totally completed for living in or partially completed for use as Verandahs.

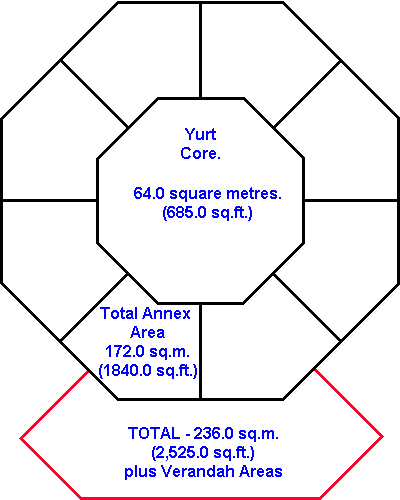

The maximum living space for a single storey Yurt is created with all 8 annexes attached.

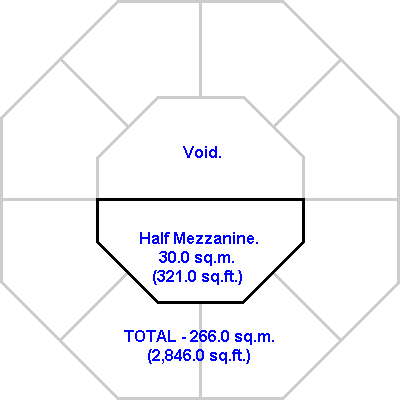

A half Mezzanine 2nd floor can be added to provide an interesting space directly below the cupola, and a Cathedral Ceiling for the Ground Floor Area below.

A full 2nd floor completes the maximum living area for a two storey is 298.0 sq.m. (3,188.5 sq.ft.)

The Yurts are designed to make the most of the Natural elements to provide comfortable living for the occupants with reduced costs for heating and cooling.
